| Shourt Line by Soft Works Ltd. | |||||
Model Railroad Products |
|||||
New Products - G Scale Holiday Wreaths
2 types; LGB Trolley and Universal
________________________________________________________________________

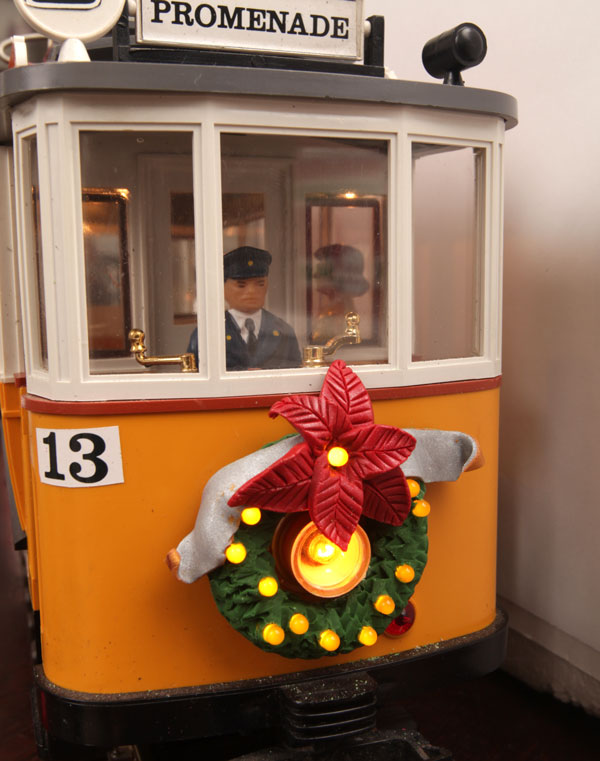

LGB Trolley Holiday Wreath for easy Plug and Play, Just Plug into the track power jacks on the front of the trolley. No wires!
Product No.: SL 8410118 Price: $159.95, Description: Blinking - Plug and Play, Indoor/Outdoor Weatherproof Holiday Wreath with 12ea 3mm Yellow Diffused asynchronous-blinking LEDs for DC or DCC power with built in male plugs for LGB trolley
SL 8212118 Just plug into the front power sockets on the front of any LGB trolley and
be running in seconds. Works with analog or DCC track power.
(simulated LED blinking - see video above for actual random LED blinking pattern and speed)
SL 8212118 For analog power be sure to install our 3 LED lighting board so both the wreath and
the interior of the trolley are fully illuminated at slow speeds. Work on DC or DCC track power.
__________________________
(simulated LED blinking - see video above for actual random LED blinking pattern and speed)
Product No.: SL 8212118 Price: $154.95, Description:non-blinking- Plug and Play, Indoor/Outdoor Weatherproof Holiday Wreath with 12ea 3mm Yellow Diffused non-blinking LEDs for DC or DCC power with built in male plugs for LGB trolley.
________________________________________________________
Universal Wired Holiday Wreath
for Loco, Car or Track Side
Product No.: SL 8212117 Price: $139.95, Description: non-blinking - Wired, Indoor/Outdoor Holiday Weatherproof Wreath with 12ea 3mm Yellow Diffused non-blinking LEDs for DC, Battery or DCC power with 18 inch 26 black AWG wires for Loco, Car or Track Side use.
SL 8212117 Wired Wreath on LGB loco (loco not included)
Wreath applied with included 3M 2 sided adhesive
__________________________
Product No.: SL 8410117 Price: $139.95, Description: Plug and Play, Assembled Holiday Indoor/Outdoor Weatherproof Wreath with 12ea 3mm Yellow Diffused asynchronous-blinking LEDs for DC, Battery or DCC power with 18 inch 26 black AWG wires.
These wreaths requires the use of an SL 8453003 LED controller for use with
AC, DC, DCC, or track power. For battery or a DC power use
the
SL 8452403 controller. Click here solderless versions of our LED controllers.
(simulated LED blinking - see video above for actual random LED blinking pattern and speed)
SL 8410117 Wired Wreath with Asynchronous-blinking LEDs for any G scale application at 2.1-3.1 Volts via a Shourt Line LED controller (see links above) (figure not included)
________________________________________________________
Made in the USA by ShourtLine.com
________________________________________________________
For questions or details on this or any of our over 7000 G Scale items Call 310-622-4431 or email us at info@ShourtLine.com
Features:
Easy Plug and Play for Trolley Style Wreaths. Easy Wiring for the Universal wreaths. Inside wreath diameter fits over LGB Trolley head/tail lights. Trolley Style requires no wiring just plug into trolley power terminals on front or rear of trolley and the wreath is connected and mounted in one operation. Installs in seconds.
Advantages:
- Trolley Wreath install and mounts in seconds
- Prototypical Appearance
- Diffused yellow/amber LEDs that match LGB loco and car lighting.
- Asynchronous-blinking LEDs for realistic independent LED animation
- Weatherproof sealed electronics for Indoor and Outdoor use
- Works with any type of track power
- UV resistance solid color wreath material so scratches to wreath do no alter color or fade
- Hand made in the USA
Specifications:
- All wreaths share these specifications:
- 3mm diffused yellow/amber LEDs
- Wired Wraths include 3M Indoor/Outdoor weatherproof 2 sided adhesive strip for attaching to locos, cars or buildings.
- Works with any type of power** (5 to 24 volts AC, DC, DCC or Battery)
- Electronic regulated power** for long LED life at variable track voltage
- Wreath circular dimensions: Outside diameter ~41mm (1.6in.) Inside diameter ~19mm (.73 in.)
- Flower (Poinsettia) dimensions: ~25mm (1 in.) diameter
- ** Note that the SL 8410117 12 LED blinking wreath requires an SL LED controller such as the SL 8453003 for track power or the SL-8452403 for battery or DC power.
- Trolley style wreaths (plug and play version):
- Power Plug: LGB compatible mini-banana male plug built into the back of wreath for both power and holding wreath the wreath in place.
- Wreath overall width Dimension: ~ 56mm (2.2 in. )
- Wired Wreath:
- Power cable dimensions: 2 each ~ 460mm (18 in.) long X 26 AWG black Kynar over plated copper wires
- Blinking LED wreath:
- Asynchronous random blinking LEDs - each LED blinks at slightly different rate
- LED blink rate: ~~3 Hz (cycles per second)
- Average current drain is only 22ma (.022 Amps) so a 9 volt battery can be used for battery operation with a long life up to 3 days continuous use)
- Note that the SL 8410117 12 LED blinking wreath requires an SL LED controller such as the SL 8453003 for track power or the SL-8452403 for battery or DC power.
Mounting and Hook-up Instructions:
Trolley Version: Remove power plug from front or rear of trolley and plug in the wreaths build in power connectors on the rear of the wreath. This takes only seconds and both provides power and holds the wreath centered around the the trolleys light.
Universal Version: Wire the wreath's cables to any source of track power, decoder or loco's power plugs. For track side applications wire to any DC or AC power source up to 22 volts and mount wreath using the supplied 3M indoor/outdoor double stick adhesive. Note that the SL 8410117 12 LED blinking wreath requires an SL LED controller such as the SL 8453003 for track power or the SL-8452403 for battery or DC power.
SL 8212117 Wired Wreath installation on a G Scale Loco________________________________________________________
16 LED 55mm Diameter Universal Wired Holiday Wreath
for Loco, Car or Track SideThe 16 LED wreath has a 55mm diameter outside dimension and the inside diameter fits around the PIKO center mounted headlamp and number board.
(simulated LED blinking - see video above for actual random LED blinking pattern and speed)The 16 LED 55 mm dia. Wreath fits the headlight and number board of PIKO
and other G scale locos with a center mounted headlamp or top mounted headlamp.
(simulated LED blinking - see video above for actual random LED blinking pattern and speed)
The 16mm Wreath fits the headlight and number board of PIKO
and other G scale locos with a center mounted headlamp.
SL 8416547 Asynchronous ramdom blinking 16 LED Wreath - Wired, Indoor/Outdoor Holiday Weatherproof Wreath with 16ea 3mm Yellow Diffused asynchronous-blinking LEDs for track side use, PIKO loco or LGB mini-mogul w center space for large headlight fixture and light board w 18" wires. 55mm outside diameter. $179.95
SL 8416147 Asynchronous ramdom blinking 16 LED Wreath - Same as SL-8416547 but wired with male and matching connector for removing wreath. Wreath has magnets on top and lower backside with 2 matching magnets to be mounted inside the boiler door or building wall for holding wreath and allowing easy removal from the inside of boiler door or building exterior wall. 55mm outside diameter. $199.95
The SL 16 LED Wreaths have the same features as the 12 LED wreaths
This photo shows the size difference between the wreaths.
The SL 12 LED (44mm dia.) on the left
and the SL 16 LED
(55mm dia.)
on the right side. The LGB figures show relative scale size of each.
________________________________________________________
Customized Options:
Contact the Shourt Line for custom designs, colors & features. Past customers have requested the addition of candy canes, toys and fruit to the wreath as well as special ribbon and flower requests. If you can think of it ShourtLine.com can make it.
For indoor or outdoor use
Happy Holidays from ShourtLine.com
Questions? Email info@ShourtLine.com or call 310-622-4431
Thanks for looking - Shourt Line by Soft Works Ltd.
