LGB 2075 Steam Tank Loco

G Scale Steam Saddle Tank Locomotive

Runs on DC (analog), MTS or DCC on loco address 0 (analog)

Made in Germany - Out Of Production

For questions on this item or details on our professional repair and conversion services
Call 310-622-4431 or email us at info@ShourtLine.com

LGB 2075 Steam Tank Loco

Click here for more and larger photos and product details

Like New

The Model Features:

This is another of my favorite LGB models and offer all the advantages of the pre-marklin LGB german products for operation with analog power or MTS, DCC using address 0 for analog locos. The tank loco has lots of room for adding DCC motor and digital sound as well as the new Massoth Pulse Smoke Generator. For analog only operation with sound add the new S decoder now on sale at our store at a special introductory price (see store for details).

Comes with original Factory box, packing, locomotive.

Standard Model features:

Weather-resistant construction
Protected Gearbox with seven pole Bühler motor
4 Powered wheels
One Traction Tire
Two Power Pickup Shoes
6 Power Pickups
Made in Germany (pre-Marklin)

Photos: (Actual item for sale in photos)

Comes with original Factory box and packing.

---------------------------------------------------------------------------------------------------------------------------

Optional Upgrades (Not included with this item but available at our store, Professional Installation and Conversion available at the ShourtLine.com)

Interior Lighting: Use Shourt Line interior warm white LED light fixtures for prototypical accurate cab ceiling/instrument lighting and coal bin for nighttime operations. Lighting also works in daylight as shown below in a similar loco. Note 180 degree illumination from these Shourt Line interior lights with prototypical correct size wiring.

Photo shows a Corpet-Louvet loco with with a Shourt Line installed Cab and Coal Bin Interior LED lighting fixtures Mfg. by the ShourtLine.com - See our store for details

Firebox Lighting: A Shourt Line installed simulated fire box can be added for realistic operation as shown below. Contact the Shourt Line of installation of this and other custom features to your loco.

Photo shows a Corpet-Louvet loco with with a Shourt Line installed Massoth Fire Box Light Module - See our store for details (note the lighted coal bin and cab illumination from 2 each Shourt Line LED lighting fixtures, one wall mounted, one ceiling mounted)

Here is the 8242060 eMOTION Fire Box Light Module miniature flicker lighting board ready for installation.

eMOTION Fire Box Light Module Small fire box light module usable for all steam locomotives. Operation in connection with a decoder featuring an animated flickering fire box or steady flickering in analog operation. Power Supply: AC/DC/DCC 5-24V Current Drain: 16mAmps. Contact our store for details.

MTS/DCC Motor and Digital Sound Decoder for MTS, DCC or analog power:

Massoth eMOTION XLS Sound Decoder with Rack Loco Sounds + Speaker + Wiring + Preloaded Loco Sounds

Powerful 3 Amp HiFi Sound Decoder with up to 6 sound channels and 13 function outputs. Usable for locomotives with up to two motors.

NEW VERSION V2.2 HARDWARE AND SOFTWARE COMES WITH;

XLS decoder V2.2 circuit board (shown above)

Massoth hi-performance speaker for selected loco

interface cable for LGB and Aristocraft DCC for selected loco

Pre-recorded digital sounds for selected loco

AND INCLUDES THE FOLLOWING FEATURES:

BREAK ON DC
Breaking with a special polarized DC-Voltage

VOLUME CONTROL OF EACH OPERATION SOUND TYPES
These 4 operation sound types can be adjusted separately:

Initial start sequences

Standing sound sequences

Shut down sequences

Operation sound sequence

LGB and SUSI Interfaces are integrated

The new eMOTION XLS Sound Decoder is the up and coming standard of the exquisite garden model railroad sound decoders. The XLS features a powerful output stage for up to two motors (3 AMPS) as well as 1 AMP for sound, light, and other functions.

Additionally, 11 function outputs including 3 light outputs and 4 contact inputs are available which makes this unit exceptionally versatile.

The integrated sound power amplifier with 6 independent sound channels sets the standard in today's locomotive sound simulations. The audio power amplifier delivers 1 watt (sinus) at 8 ohms impedance. The eMOTION XLS Sound Decoder delivers optimum characteristics for analog and digital operation.

Optimized Analog- and Digital operation guaranteed
The XLS works in analog mode starting at the lowest voltage possible. The settings and functions of the decoder may be set with the DiMAX PC Module and may be used in analog mode. Thus sounds may be triggered in analog mode via reed contacts.

NMRA DCC and LGB© MZS/MTS
The eMOTION XLS is compatible to NMRA/DCC and works with all generations of the LGB MTS systems. State of the art DATAFLASH technology and the latest programming procedures enable the reloading of sounds and software directly via the track.

ORIGINAL SOUND in digital quality
The XLS is delivered with a HiFi loudspeaker (57 mm - depending on loco selected) with a metal cap and an interface cable for LGB and Aristocraft DCC. The unit may be installed wire by wire as well. Mounting material is provided.

Technical Data Drive Decoder:
- NMRA/DCC compatible
- LGB© MTS I, II, and III compatible
- best driving characteristics with analog op. (selectable)
- 14, 28, and 128 Speed Steps
- 256 internal speed steps
- 10239 Locomotive Addresses
- Automatic Detection of operating mode and speed steps setting
- 3.0 Amps max. continuous output (drive stage)
- 4.0 Amps max. maximum total output (inc. functions)
- Adjustable Motor frequency
- Load Control in digital and analog
- Switching Speed (programmable)
- Adjustable Motor driving curve

Technical Data Sound Amplifier:
- 6 independent sound channels
- High end amplifier stage with 1 Watt output (sinus)
- Loudspeaker connection with 8 Ohms impedance
- Sound Storage Capacity up to 150 sec.

Technical Data Function Outputs:
- 3 Light outputs (front, rear, internal 0.3 Amps each)
- 6 Function outputs (0.6 Amps each)
- Programmable Special Functions
- Suitable for Power Buffer connection
- 1 Amp max output of all function outputs
- Intelligent function mapping up to F16
- Parallel and serial data processing (LGB© MTS Pulse Chain Control)
and automatic detection (serial data processing disengageable)

Size in Millimeters: 60 x 32 x 18 mm

MTS and DCC compatible loco decoder with Hi Fi digital loco sounds and 6 user downloadable sound tracks for any sounds of your choice. Easy install terminal strips speed wire connections without soldering. Includes the loco sounds, speaker and wiring for the loco of your choice.

eMOTION XLS Sound Decoder Powerful 3 Amp HiFi Sound Decoder with up to 6 sound channels and 13 function outputs. Usable for locomotives with up to two motors.

Massoth eMOTION S Sound Decoder for analog (DC) or MTS/DCC power:

New product - smallest size digital full feature Sound board available.

New - Introductory Price for a limited time only (see our store for details)

Features:

Universally sound board with decoder for analog and digital operation; equipped with a SUSI interface and a 3 Watt output stage.

eMOTION S The tiny sound decoder.
The eMOTION S sound decoder has the same sound features as the XLS sound decoder.

ANALOG AND DIGITAL OPERATION
All sound features are available at the lowest voltages possible. A stabilized analog operation is guaranteed at 5Volts.

NMRA DCC and LGB® MTS
The eMOTION S supports the full NMRA protocol. The eMOTION S features an automatic detection of LGB® MTS signals which makes this sound decoder ideal for all generations of the LGB® MTS system. The bus interface may be used with Massoth/LGB® OnBoard or SUSI protocol. Fits into all G-Scale locomotives like Bachmann, USA-Trains, Aristocraft, Accucraft, KISS

AUTHENTIC SOUND in digital quality
The eMOTION S sound decoder produces authentic locomotive sounds in digital high-level quality. Massoth uses only sound recordings of original locomotives adjusted to the sound decoder's technology. The eMOTION S may hold more than 2 minutes of sound. This enormous capacity is sufficient for a variety of additional high-quality sounds. The sound decoder features a 3-Watt high-performance output stage. The volumes of all 16 sounds may be adjusted separately.
Massoth utilizes top-of-the-shelve technology paired with state-of-the-art processing ensuring reprogramming via the programming track. This guarantees that all decoders may be updated at any given time as well as for all new decoder generations to come.
Note: A sound upgrade or firmware update may only be done with a PC-Module (8175001)

Summary of features:

Digital sound module

16 kHz sound processing

Capacity of sound memory + 2 minutes

Analog and digital operation, SUSI interface, LGB® OnBoard

Analog operation starting with 5 Volts

3 Watts output

User-friendly terminals to connect
   loudspeaker,
   external volume control and
   pulse generator

Additional terminals for
   power buffer
   2 function outputs
   2 contact inputs

Wide range of sounds available

Updatable via PC-module

SCOPE OF SUPPLY:
The eMOTION S comes with an attached power cable and the SUSI interface cable.
In case your locomotive does not provide a loudspeaker you may choose one from our wide range of loudspeakers.
Here you can find the list of loudspeakers of each loco.

Measurements: 35 x 20 x 12 mm (plus 2x 5mm extensions which may be cut off)

Specifications:

Mfg: Massoth Electronics Germany (the manufacturer of LGB electronics)

Automatic Power Buffer: This Loco has limited power pickup points that can result in loco shudder or stalls on the track due to frog points, dirty or uneven track and can cause pitting and blackening of the loco wheels. and a power buffer added to a decoder will ensure smooth operation and help preserve your loco.

The Shourt Line 6101222 Automatic 2 Wire 22,200uF Power Buffer is the perfect size for this LGB Corpet Loco. It fits inside the loco with XLS sound decoder and pulse smoke generator with room to spare.

The shoes of this loco may be removed once the Shourt Line 6101222 Auto Power Buffer is installed for a more prototypical appearance and to avoid the shoes catching on your switch tracks (points).

Direct From Manufacturer - MADE IN THE USA by ShourtLine.com

Automatic Power Buffer 22,200uF, Shourt Line Item No.: 6101222

Pulse Smoke Generator: This LGB Steam Locomotive can be fitted with the a Massoth Pulsed Smoke Generator:

Massoth 8412201 Pulsed smoke generator 19VPulsed smoke generator

To view videos please click on this link: 8412201 pulsed Smoke Generator

The Pulse Smoke Generator for retrofitting. This smoke generator may be retrofitted in most of the steam locomotives on the market.
The smoke is produced according to the steam chuffs. The 19 unit barely consumes 0.2 (0.5 with 5V) Amps and produces a remarkable amount of smoke.
A special feature: the smoke unit may be set to Diesel operation by a DIP switch setting. The synchronization pulse may be produced by a wheel pulse generator or by a eMOTION decoder (XL Motor Decoder or XLS Sound Decoder).
Two versions of smoke generator are available: 5Volts and 19Volts (19Volt smoke generator included with this loco).
The standard version (19Volts) suites the Massoth eMOTION decoders (including LGB®). The current draw is only 0.2 Amps.

Dimensions box apr.: 50x28x30mm
Scope of delivery: 1 Pulsed smoke generator, 1 Lead for the Pulse Generator

Massoth Item-Nr.: 8412201 Pulsed smoke generator 19V

Enhanced smoke element for outdoor use only, that produces a remarkable amount of smoke (see this on the video at Massoth.com). The loco has directional lighting that can also be controlled via the MTS or DCC control systems. The loco smoke generator is designed to use LGB or Massoth smoke and cleaning fluid, also available at our store.

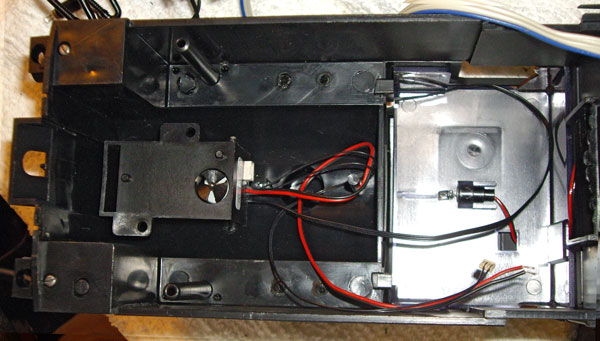

Installation photos: Note the large space available for a Massoth Pulse Smoke Generator, Massoth S sound decoder or Massoth Sound and Motor Decoder as well as a Shourt Line power buffer (LGB 2075/2076 locos shown)

.

View from top of the loco's smoke stack showing the pulse smoke generator heating element at the center of the smoke stack.

Reed Contact:

Massoth 8242020 eMOTION Reed Contact PCB

Install this Reed Contacts into the motor block of a loco to release the sounds Whistle, Bell or Horn with a Track Magnet.

eMOTION Reed Contact PCB

Volume Control:

Massoth 8242010 XLS Volume Control

This potentiometer is used for manual volume control of eMOTION XLS or LS Sound decoders. Has a 30cm long cable and plug for direct decoder connection.

Volume control allows easy adjustment of sound (sound also controlled by MTS/DCC remote control)
