G SCALE LGB OK PIKO 35271 Electric Switch Machine NEW

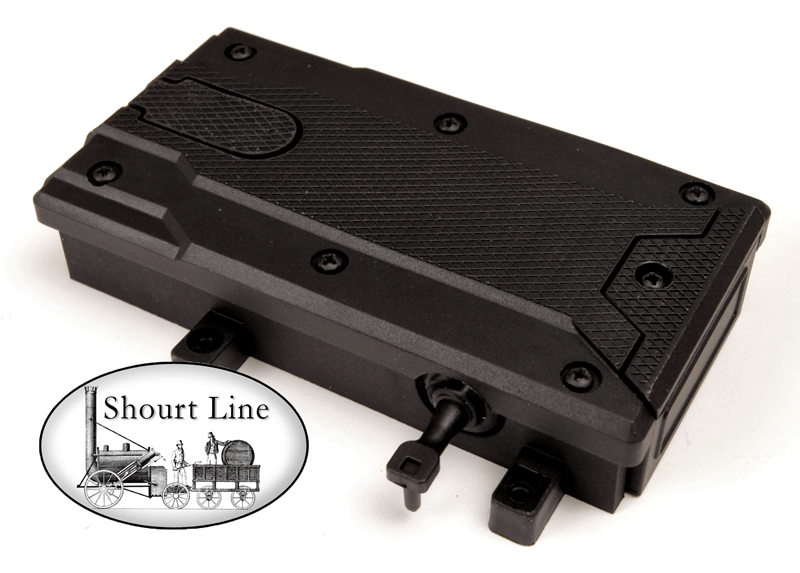

PIKO 35271 Electric Switch Machine - Waterproof
Waterproof & easy to install
Waterproof - Takes a licking and keeps on ticking - without the annual cleaning requirement of all other switch motors.
Fits LGB, PIKO and all G Scale switch tracks compatible with LGB switch motors
Click here for more product details and larger photos
Click here for all PIKO Products
For questions or details on our professional sound and DCC conversion services
Call 310-622-4431 or email us at info@ShourtLine.com
Description:
This switch motor is the only waterproof large scale switch motor available today. It is 100% compatible with the LGB switch motor mounting
Precision electrically operated switch track motor for Indoor/Outdoor use. Totally sealed for completely reliable in water, dust, dirt, sand or humid environments
Features:
- Made in GERMANY
- 2 year guarantee by PIKO America
- Weather & Waterproof for Indoor or Outdoor operation
- Waterproof Case
- Waterproof seals for actuator arm, control wiring, terminal screws, relay contacts and switch light
- Easy Install (functional replacement for LGB switch motors)
- Silky smooth actuator arm movement
- Works with any G scale switch tracks
- Installs in seconds
- LGB Compatible (Waterproof replacement for LGB EPL motors)
- DC, AC and DCC Compatible with PIKO control box or switch decoder
- Low Maintenance
Specifications:
- 18-24V DC 48VA operation, or 12-16.5VAC AC operation with the PIKO 35260 Switch Control
- Operate with MTS or DCC track power using either:
- PIKO 31013 4 channel Switch Decoder
- PIKO 35016 1 Channel Waterproof Switch Decoder
- Massoth 4 channel or 1 channel Switch Decoder
- Mounts to an G scale switch track
- Environmentally sealed waterproof case and control arm for operation in any climate
- Dimensions: 99 x 53 x 22 mm (3.9" x 2" x .9")
Optional Equipment:
Photos:
- PIKO 35265 Relay Contacts for train automation
- Waterproof
- 2P2T Double Pole Double Throw relay contacts
- Layout Automation and Switch Track Feedback
- PIKO 35266 Switch Lantern, Lighted and Rotates with switch motor
- Waterproof
- Working Light
- Rotates to indicate position of switch
- PIKO 35260 Switch Control Box
- Weather resistant
- Control for up to 4 sets of switches
- Operate with either DC, AC or DCC power
- LED status indicator
- PIKO 35013 Switch Decoder
- Weather proof sealed case
- Operate up to 4 sets of switches
- LED status Indicator
- Programmable switch address for each channel
- PIKO 35016 1 Channel Switch Decoder
- Waterproof proof sealed case
- Plugs into swtich motor and wires to track power
- Programmable switch address
New in PIKO factory sealed package
Complete with instructions, switch motor, two mounting screws and waterproof case
Instructions:
All aboard - But don't forget to throw the switches to the main line with the waterproof PIKO Switch Motor!
Click here for more product details and larger photos
Questions? Email info@ShourtLine.com by clicking here
Thanks for looking - Shourt Line by Soft Works Ltd.
